Ensure Your Electrical System’s Safety with Our Reliable Transformer Testing Solutions.
Transformers are core components within power systems, whether located in substations, power grids, transmission lines, or power plants. They perform the critical task of voltage transformation. Given their high maintenance and replacement costs, regular and effective testing and maintenance are paramount to ensuring the long-term stable operation of these vital assets.
Transformer testing encompasses a series of critical procedures designed to assess the electrical insulation performance, operational status, and overall health of a transformer. These tests not only help identify potential faults but also predict equipment lifespan, thereby preventing unexpected outages and expensive repair costs.
By regularly performing transformer tests, power operators and maintenance teams can gain a comprehensive understanding of their transformers’ health, promptly identify and resolve issues, thereby significantly enhancing equipment reliability, extending their service life, and ultimately ensuring the safe and stable operation of the power system.
Transformer test equipment is essential for ensuring the safety, reliability, and performance of power and distribution transformers. These instruments are used by manufacturers, utilities, and maintenance teams to perform routine diagnostics, factory acceptance tests, and condition assessments of transformers.
KV Hipot Power Equipment Co.,ltd provide the test instruments such as transformer winding resistance tester , Transformer TTR Tester, Transformer Tan Delta tester, Trequency response analyser and Transformer Oil Tester ect.
Applications supported by KV Hipot transformer test equipment include:
Insulation Resistance Tester, also known as meggermeter., is a specialized electrical test instrument used to measure the insulation resistance of electrical equipment, components transformer , power cable, circuit breakers .
KV-3100 Insulation Tester features a shockproof, dust-proof, and moisture-proof design, making it ideal for harsh working environments.
Transformer Turn Ratio Tester is used to check turn ratio of transformer, tap switch situation, whether transformer interturn is short circuit and transformer can run in parallel or not . The tester adopts three-phase precision inverter power. It is fast measurement and Easy Operation .mer can run in parallel or not .
Tan delta test kit is a advanced, fully automatic device for on-site measurement of dielectric loss/dissipation factor(tgδ) and capacitance (Cx) in electrical equipment. It is ideal for use with transformers, insulating bushes, CT/PTs, Capacitors, MOAs, and similar devices.

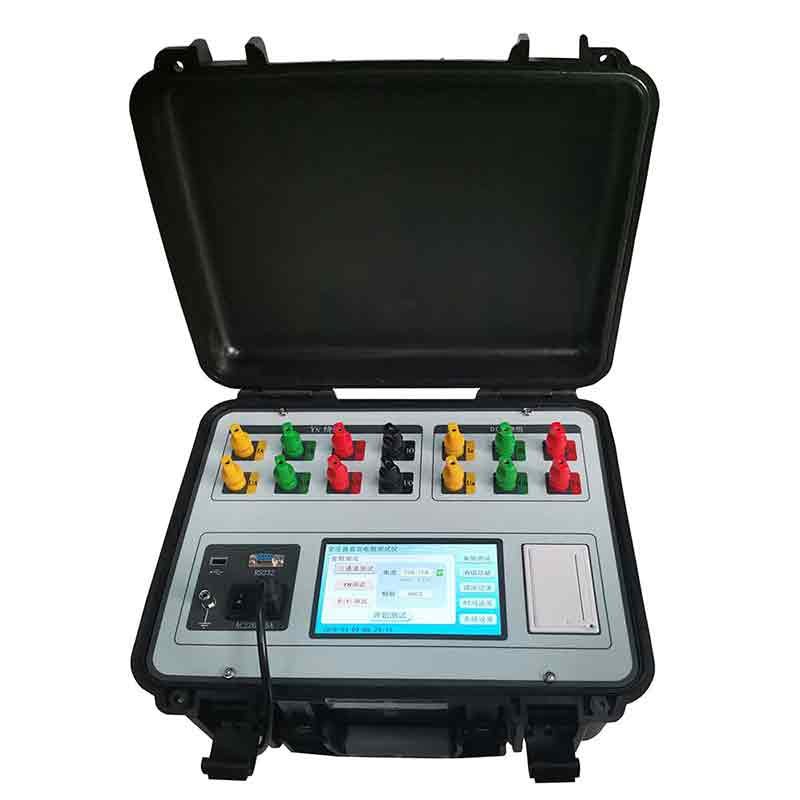

Transformer Winding Resistance Tester is a specialized instrument used to measure the resistance of transformer windings (both high-voltage and low-voltage sides). Transformer DC resistance is a must-test item for the semi-finished product, finished product factory test,installation, handover test and preventive test of the power sector in the transformer manufacturing.
Transformer On-load Tap Changer Tester is mainly applied to measure the transient waveform, transient time, transient resistance value, three-phase synchronization of transformer on-load tap-changers.
Variable Frequency AC Resonance Test System KVXZ is applied for dielectric Withstand testing for electric equipment HV transformer , HV cable , GIS.
Dielectric Withstand Tester for transformer verifies that the transformer’s insulation system complies with safety and quality standards.

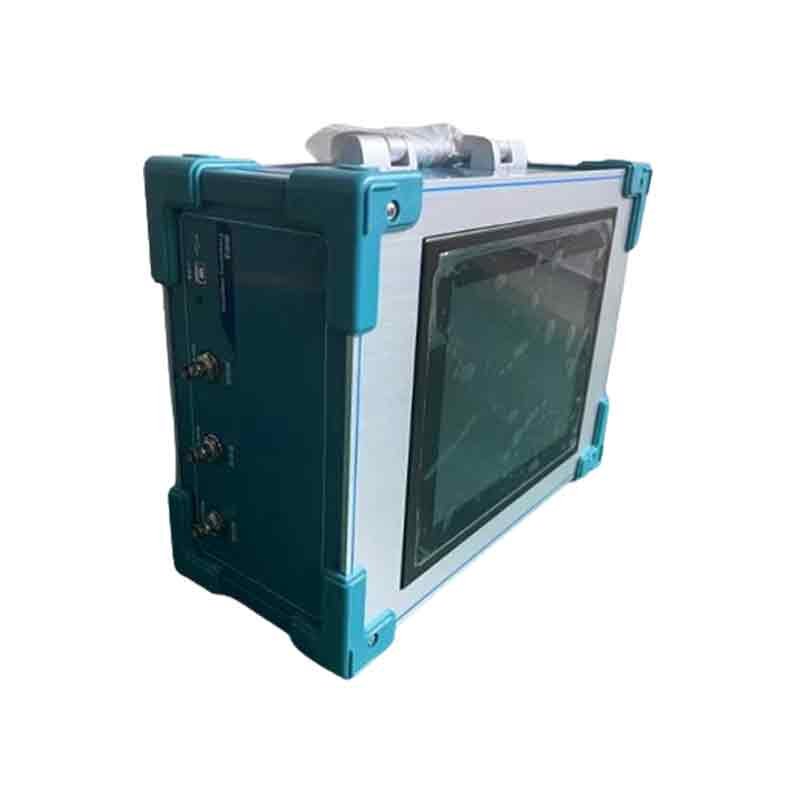

Frequency Response Analyzer will quantify the response changes of internal winding parameters in different frequency domains, and then determine the degree of change of transformer internal windings according to the variables, the amplitude of frequency response change, the area and the trend of frequency response change.

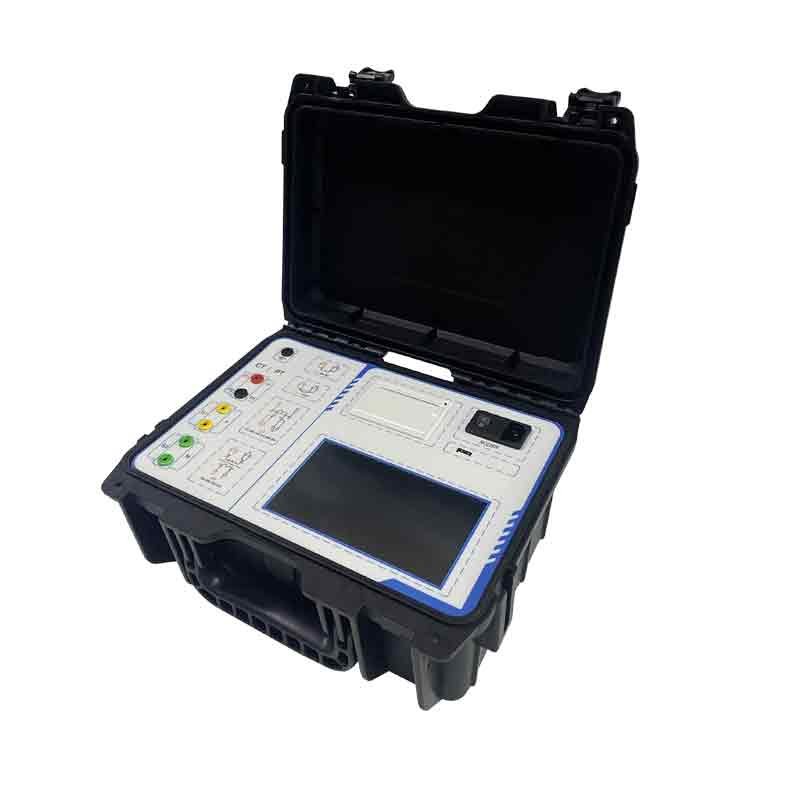

CT PT Analyzer is designed for automatically test transformer characteristics of protection type, metering type, GIS bushing, zero sequence.
Transformer testing bench is a modular and automated system that combines multiple testing instruments and control software in a single setup to perform standard routine, type, and special tests on transformers. It ensures the transformer meets design, safety, and performance standards before delivery or after servicing.
A transformer BDV tester (Breakdown Voltage Tester) is a specialized testing device used to measure the dielectric strength of transformer oil. It helps evaluate the insulating properties of the oil used in power transformers, circuit breakers, and other high-voltage equipment.
Inter-molecular forces will form interface tension and surface tension of liquids. The tension value reflects the physics and chemical properties and material construction, which is one the most important for inspecting product quality.

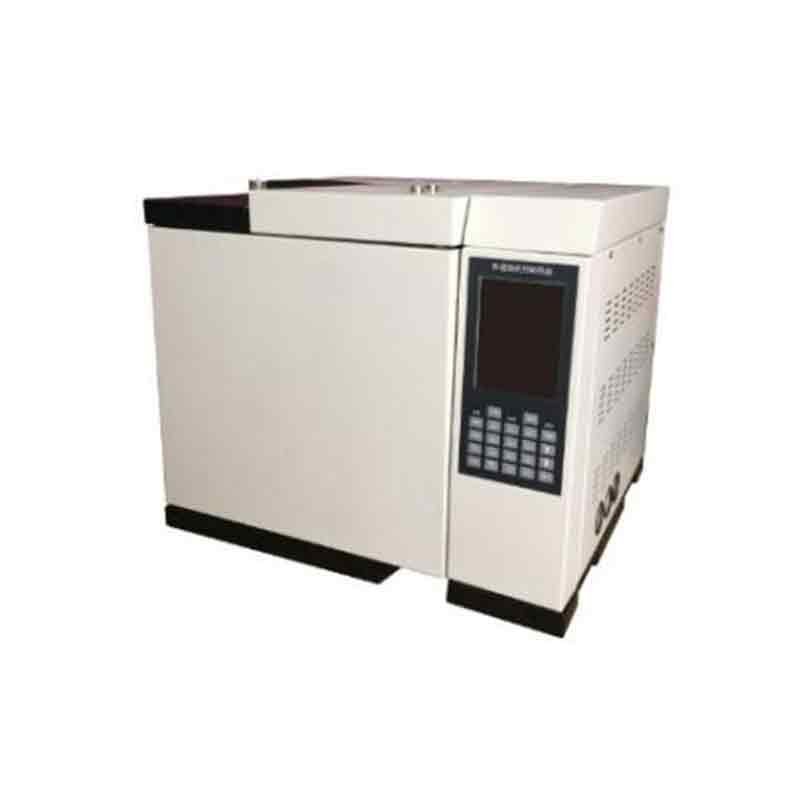

Transformer Dissolved Gas Analyzer uses chromatographic method to determine the content of dissolved gas in transformer oil. The full analysis of the content of the 7 gas components dissolved in the insulating oil can be completed with one sample injection.
The operational integrity of a power transformer is non-negotiable, and ensuring its health requires more than just basic measurements. Our advanced transformer test equipment delivers the critical diagnostic insights needed across the entire asset lifecycle.
Whether you are performing rigorous quality control in the factory (FAT), commissioning new assets in the field, or conducting predictive maintenance to prevent costly failures, our high-precision Transformer Test Equipment are engineered to provide the accurate, reliable data you can trust. Explore our solutions designed for your specific application.
Transformer Tan Delta Tester is a specialized electrical testing instrument used to assess the insulation condition of a transformer. It measures tan delta, also known as the dissipation factor (DF), Loss Angle or power factor, which indicates the dielectric losses in the insulation system.
Testing the DC resistance of transformer or motor windings helps detect issues such as shorted turns, loose connections, or damaged conductors. It ensures that the winding resistance is within design specifications for proper operation. Significant deviations may indicate overheating, corrosion, or poor manufacturing. This test also verifies the integrity of tap changers and winding connections. Besides, it is a key step in preventive maintenance and quality assurance.
Yes. Our instruments are designed and manufactured to comply with the relevant international standards, such as IEC 60076 for power transformers and IEEE C57.12. This ensures that the test methods and results are accurate, repeatable, and globally recognized, giving you confidence in your asset management decisions.
Winding resistance tester can adopt the “step current method,” which involves initially applying a low current—typically around 20% of the rated test current—to establish a magnetic field. The current is then gradually increased to the rated level (e.g., 1A, 5A, or 10A). This helps minimize the impact of the inductive energy storage process.
In addition, the tester is equipped with an automatic arc suppression circuit, which reduces the effect of back electromotive force (EMF) during current switching and prevents pointer jitter.
By enabling the “fast stabilization mode,” the tester uses intelligent algorithms to predict the final stable resistance value. When the rate of change in the measured value falls below 0.05% per second, the reading is automatically locked. These combined techniques can reduce the stabilization time from the conventional 3–5 minutes to under 1 minute for transformers rated above 1000 kVA
We can provide exptional service and technical support to solve your electrical test problems.
