Vue d'ensemble

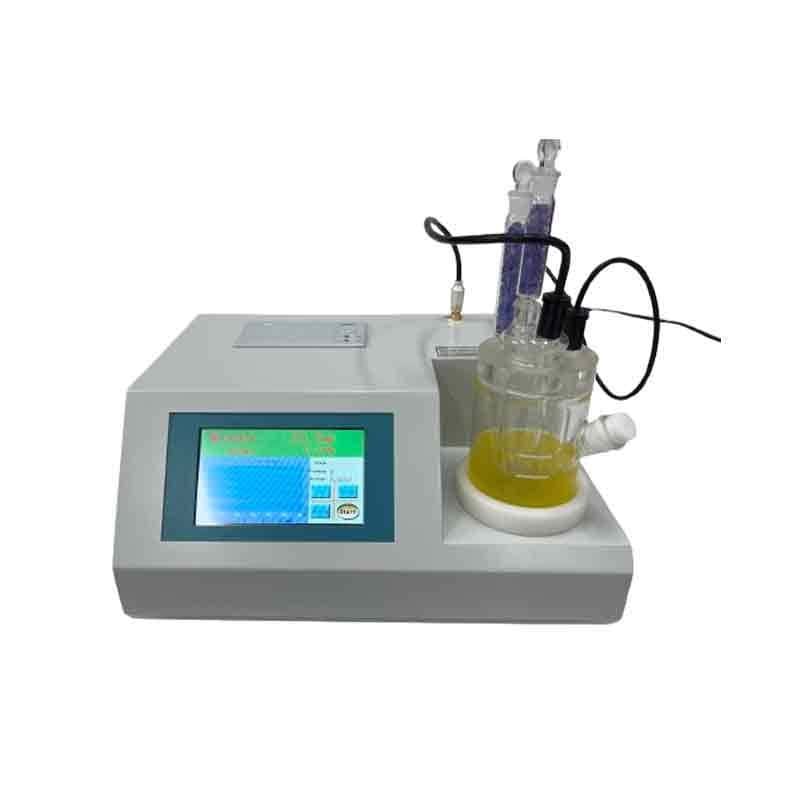

Oil Trace Moisture Meter (Karl Fischer Moisture Tester) utilizes the Karl Fischer coulomb titration method, providing reliable trace moisture determination for liquid, gas, and solid samples. For testing insoluble solid reagents and materials that may contaminate the electrode and reagent, appropriate injectors for solids, gases, and liquids can be used for indirect measurement. This highly efficient, fully automated analytical instrument is widely employed in various industries, including electric power, petroleum, chemicals, pharmaceuticals, railways, environmental protection, and research institutions.

Unique Advantage

• High-Resolution Display: Equipped with a color touch LCD display for intuitive and user-friendly operation.
• Powerful Processing: Utilizes a high-performance ARM processor for fast, stable performance and excellent anti-jamming capabilities.
• High Detection Speed and Precision: Offers rapid and accurate moisture detection.
• Fault Diagnosis: Includes a fault diagnosis function that displays and prints results at the end of each test.
• Dynamic Curve Indication: Features a dynamic curve function for a more intuitive testing experience.
• Data Storage: Capable of storing up to 500 data records.
• Delay Measurement Function: Effectively measures lower moisture content in specimens.
• Adjustable Stirring Speed: Stirring speed can be controlled via a sliding touch panel.
• Flexible Calculation Algorithms: Water content calculation formulas can be adjusted based on volume and weight parameters, allowing for timely modifications without disrupting measurement accuracy.

Technical Data

• Drop Formula:Electric quantity titration (Coulomb analysis)
• Range:100 mg to 0 µg (10 µg to 100 µg)
• Threshold:1 µg
• Précision :± 100 µg + 3 µg; ± 500 µg + 3% (excluding environmental humidity error)
• Test Sample Types:Solid, liquid, gas
• Display:64K color high-definition touch monitor
• Data Storage:1,000 test records
• Display Features:Dynamic curves and text
• Stirring Mixing Speed:Adjustable via sliding touch panel
• Operational Lifetime:10 years of normal use without power interruption
• Printer:Micro thermal printer, 56 mm paper width
• Power Supply:220V ± 10V AC, 50 Hz ± 2.5 Hz
• Power Rating:50 VA
• Operating Temperature:5°C to 35°C
• Environmental Humidity:Less than 85%
